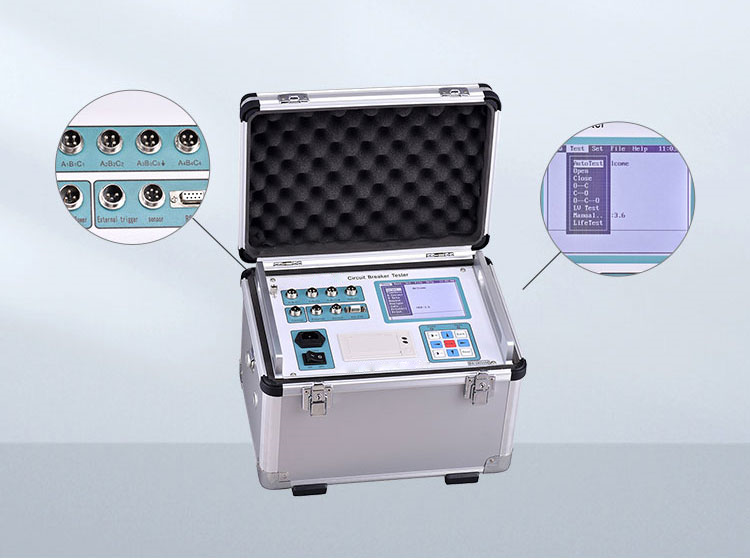

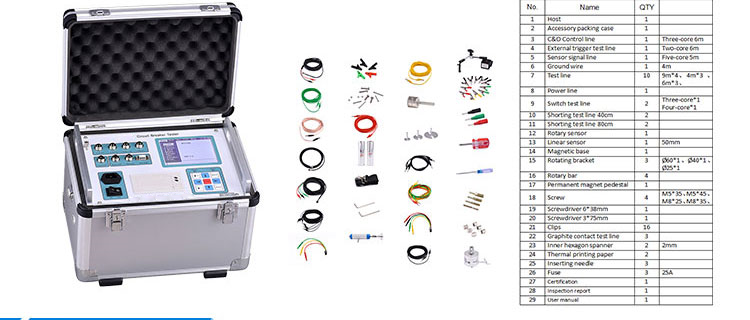

Dynamic Circuit Breaker Tester For High Voltage Circuit Breaker Test Equipment Switchgear Dynamic

This circuit breaker analyzer is suitable for mechanical characteristic testing of SF6 switches, GIS combinations, vacuum switches, and oil switches produced domestically and internationally.

• Applicable to all types of SF6 switches, GIS switchgear, vacuum switches, and oil switches with metal contacts manufactured domestically and internationally
• Universal speed sensor, linear travel sensor, and rotation sensor for convenient and simple installation
• Large LCD screen with direct transmissive type, background light, and electronically adjusted contrast
• English menu prompts for operation; displays all data and oscillograms after single on-off action
• Stores multiple sets of switch off and switch on test results with real-time clock for date and time recording
• Built-in high-speed micro-printer for printing all data and illustrations
• Includes Windows DB-8001/8001(II) Circuit Breaker Data Analysis Management Software for PC connectivity
• Strong data analysis function for effective analysis of circuit breaker mechanical characteristic parameters
• User-defined additional speed program for adding various instantaneous opening and closing speeds

• Input power supply: 220V±10% 50Hz±10%
• Atmospheric pressure: 86~106kPa
• Temperature: -10~40℃
• Humidity: ≤80%RH

• Dielectric strength: Power on power frequency 1.5KV pressure for 1 minute, without any arc over

• Time measurement range: 4000.0ms
• Time resolution: 0.1ms
• Error: Within 100ms: 0.1ms±1 digit; Above 100ms: 0.1%±1 digit; Synchronization: ±0.1ms
• Speed measurement range: 20.00m/s
• Speed resolution: 0.01m/s
• Error: Within 0-2m/s: ±0.1m/s±1 digit; Above 2m/s: ±0.2m/s±1 digit
